Small Pitch Led Display

UHD Small Pixel Pitch LED Display

KN 4K Small Pitch Led Display

Product Details

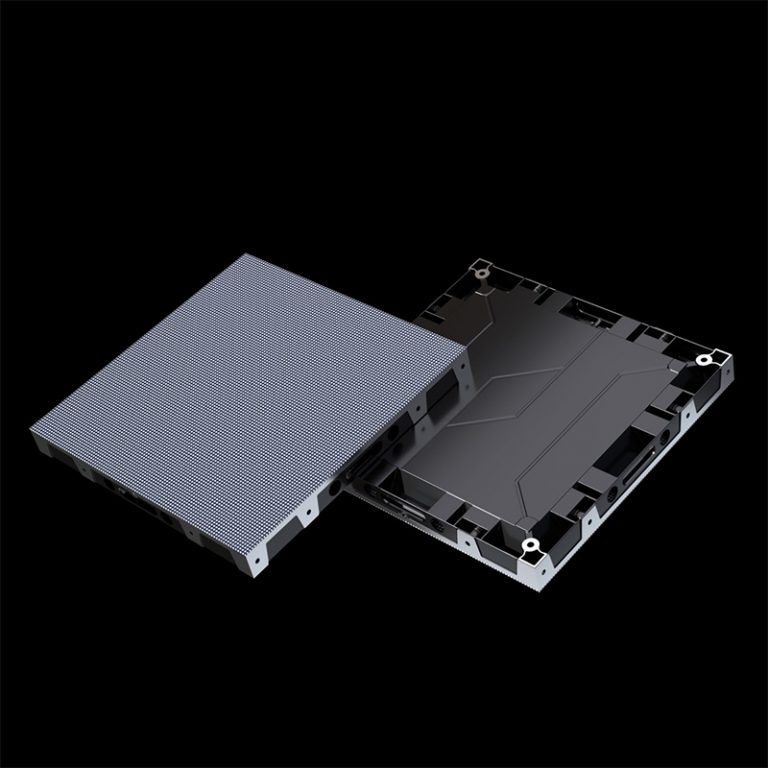

KN 4K Small Pitch Led Display

1.4k HD Small Pixel Pitch Led Display:Easily splicing 2K/4K/8K Screen
Full front service,Simple installation , hanging /stacking / mounted on wall,90 degree setup supported

2.HD Seamless Performance:Led wall without gap, not like LCD/DLP, presents the glorious video effect.

3.Hub Pin Connection:Hub pin connection between Led module & cabinet, makes it much more stable to bring the vivid pictures

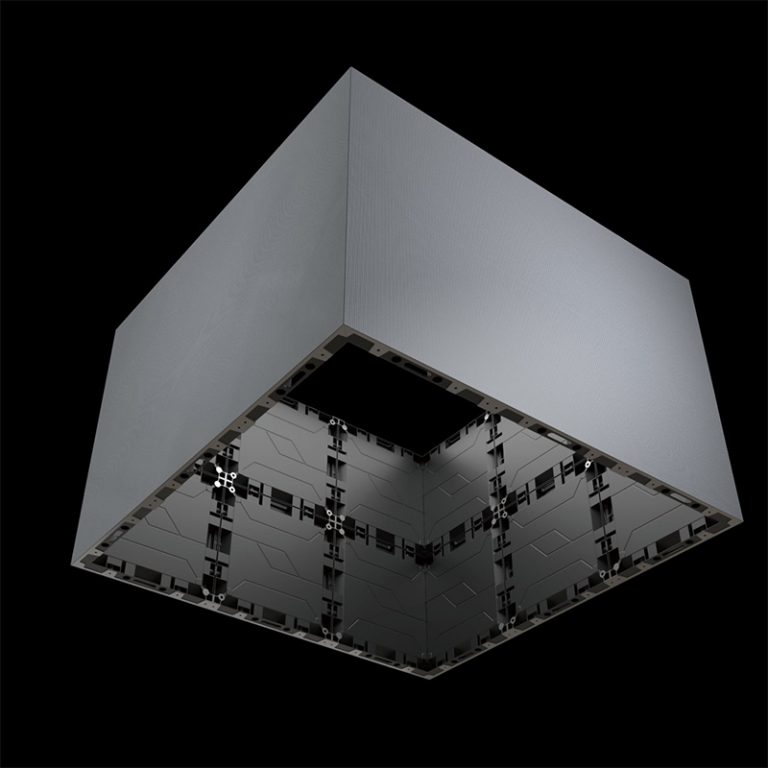

4.90 Deg. Rectangular Splicing:Besides normal setup as background led wall, 90degree creative seamless installation supported.

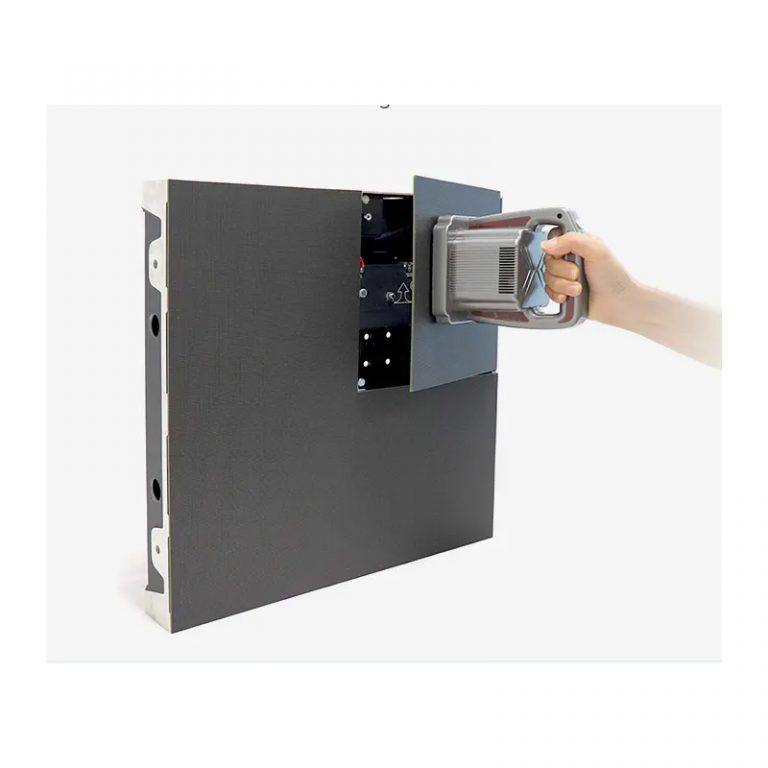

5.Slim And Lightweight:Front Service , Effortless Service,All cabinet components are accessible from the front with the magnetic tool supplied to ensure efficient maintenance.A single cabinet weights only 6kg and is only 54mm thick, greatly reducing the load on the wall.

6.Multiple Installation Supported:Wall mounted, stacking, hanging application

Model Name	MIN2.5	MIN2.0	MIN1.8	MIN1.6
Pixel Pitch	2.5mm	2.0mm	1.86mm	1.667mm
Pixel Density/㎡	160,000 dots	250,000 dots	422,472dots	360,000 dots
LED Configuration	SMD2121	SMD1515	SMD1515	SMD1010
Module Size	240x240mm	240x240mm	240x240mm	240x240mm
Module Resolution	96*96dots	120*120 dots	133*133 dots	150*150dots
Panel Dimension	480*480	480*480	480*480	480*480
Panel Resolution	192*192dots	240*240dots	266*266 dots	300*300 dots
Panel Weight	7 Kg	7 Kg	6.8 Kg	6.8 Kg
Driving Mode	1/32	1/40	1/43	1/48
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
Brightness	≥ 1000 cd/㎡	≥ 1000 cd/㎡	≥ 1000 cd/㎡	≥ 1000 cd/㎡
Maintenance method	Front/back services
Protection grade	IP43
Operating temperature/Humidity	-40℃~+60℃
Input voltage	110-220V AC±10%
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system	PCTV+DVI video card+control card+fiber
Life Time	>100,000 Hours
