Rental Stage Led Screen

Stage& Rental Led Display

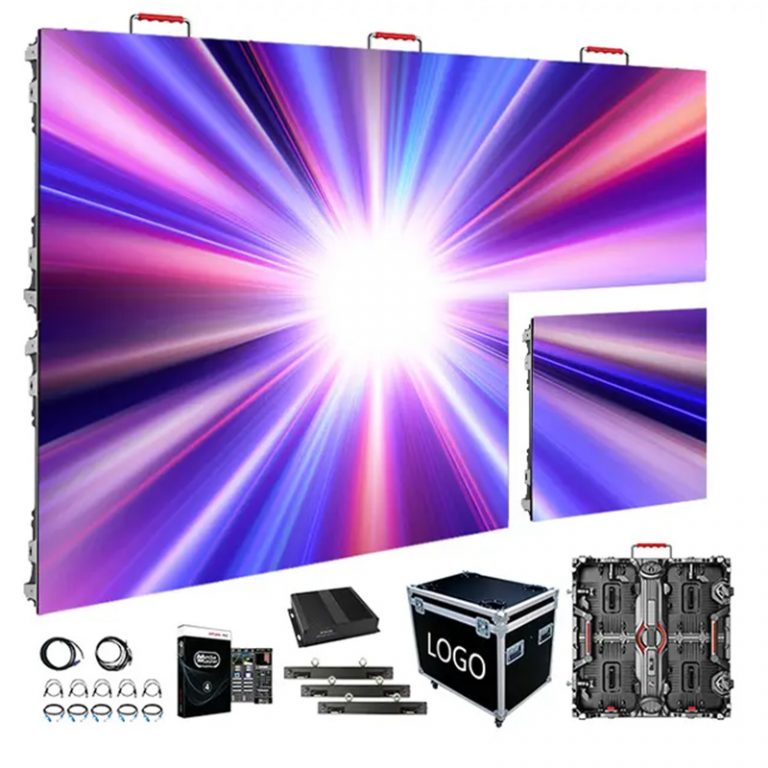

K2 Rental Stage Led Screen

1.Integrated cabinet design saves maintenance time.
2.Plane lock and radian lock are integrated to support a variety of scene applications.
3.Radian lock support 0°/ °±15°.
4.Modular design of power control cabinet, no wire is needed to connect the module.
5.The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable.

Chat Now

Product Details

K2 Rental Stage Led Screen

1.Integrated cabinet design saves maintenance time.

2.Plane lock and radian lock are integrated to support a variety of scene applications.

3.Radian lock support 0°/ °±15°.

4.Modular design of power control cabinet, no wire is needed to connect the module.

5.The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable.

ITEM	INDOOR				OUTDOOR
Pixel Pitch	P1.925-IN +GOB	P2.604-IN	P2.976-IN	P3.91-IN	P2.604-OU	P2.976-OU	P3.91-OU	P4.81-OU
LED lamp	SMD1515	SMD1515	SMD2121	SMD2121	SMD1415	SMD1415	SMD1921	SMD1921
Density/m2	262144dots	147456dots	112896dots	65536dots	147456dots	112896dots	65536dots	43264dots
Brightness	1200nits	1200nits	1200nits	1200nits	≥ 4500nits	≥ 4500nits	≥ 4500nits	≥ 4500nits
IP rating	IP45	IP45	IP45	IP45	IP65	IP65	IP65	IP65
Scan	32scan	24scan	21scan	16scan	24scan	21scan	16scan	13scan
Module weight	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg
Cabinet Weight	7.5kg	7.5kg	7.5kg	7.5kg	8.5kg	8.5kg	8kg	8kg
Module size	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm
Cabinet size	50050085mm	50050085mm	50050085mm	50050085mm	50050085mm	50050085mm	50050085mm	50050085mm
Cabinet Size	500100085mm	500100085mm	500100085mm	500100085mm	500100085mm	500100085mm	500100085mm	500100085mm
Module pixel	129*129dots	96*96dots	84*84dots	64*64dots	96*96dots	84*84dots	64*64dots	52*52dots
Cabinet pixel	259*259dots	192*192dots	168*168dots	128*128dots	192*192dots	168*168dots	128*128dots	104*104dots
Max Power	500w/sqm	500w/sqm	500w/sqm	500w/sqm	500w/sqm	500w/sqm	550w/sqm	550w/sqm
Average Power	160w/sqm	160w/sqm	160w/sqm	160w/sqm	160w/sqm	160w/sqm	200w/sqm	200w/sqm
Cabinet Materiel	Die-casting Aluminum
Viewing Angle	Horizontal 160(+70/-70) deg Vertical 160(+70/-70)deg
Control way	synchronous/asynchronous
Gray Scale(bit)	256 level 16 bit
Operating system	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity	10% ~ 90%
Input Voltage(V)	AC 100-240
