Outdoor Fixed instllation aluminum Led display

Commercial Advertising LED Display

1.960x960mm LED Digital Display Board：3840Hz high refresh rate and 6000CD/㎡ high brightness，Magnesium alloy material, sturdy and durable

2.Openable Back Cover：Kingvisionled LED display has a compact structure and the back cover can be opened quickly for maintenance operations.

3.Fast Heat Dissipation:LED display is equipped with 4 wing fans on the back cover for quick heat dissipation.

4.Superb Display Effect:In commercial display applications, EA960R3’s high brightness and high refresh rate bring users more realistic and vivid visual effects.

5.Application Scenarios: Kingvisionled LED screen is suitable for a variety of application scenarios, such as commercial plazas, commercial event venues, stage events, commercial street advertising, etc.

Chat Now

Product Details

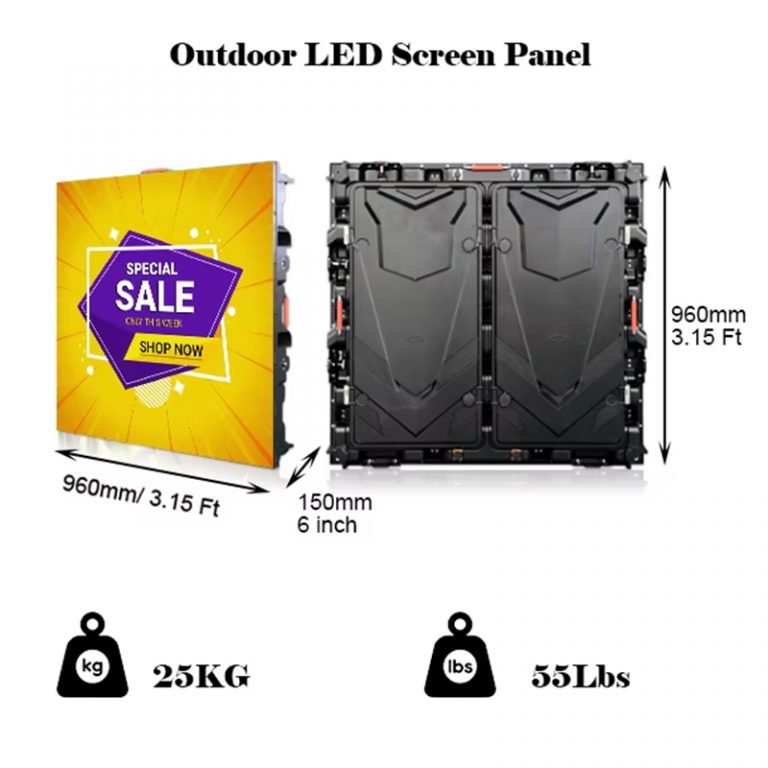

1.960x960mm LED Digital Display Board：3840Hz high refresh rate and 6000CD/㎡ high brightness，Magnesium alloy material, sturdy and durable

2.Openable Back Cover：Kingvisionled LED display has a compact structure and the back cover can be opened quickly for maintenance operations.

3.Fast Heat Dissipation:LED display is equipped with 4 wing fans on the back cover for quick heat dissipation.

4.Superb Display Effect:In commercial display applications, EA960R3’s high brightness and high refresh rate bring users more realistic and vivid visual effects.

Pixel Pitch (mm)	P5	P6.67	P8	P10
Model	KP-P5	KP-P6.67	KP-P8	KP-P10
Pixel Configuration	SMD1921	SMD 2727	SMD3535	SMD3535
Density (Pixels/㎡)	40000	22500	15625	10000
Module Resolution (Pixel)	64×32	48×24/48×48	40×20	32×16
Module Size (mm)	320x160mm	320x160mm/320x320mm	320x160mm	320x160mm
Driving Mode (Duty)	1/8 scan	1/6 scan	1/3 scan	1/2 scan
Cabinet Size (mm)	960×960	960×960	960×960	960×960
Cabinet Weight (KG)	32	32	32	32
Brightness (CD/㎡)	6500	6500	6500	6500
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	16	16	16	16
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	800	800	800	800
Avg. Power Consumption (W/㎡)	350	350	350	350
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	3840	3840	3840	3840
Working Temperature (℃)	-30～+65	-30～+65	-30～+65	-30～+65
Lifetime (Hours)	100000	100000	100000	100000
Protection Grade	IP66	IP66	IP66	IP66
