Outdoor 3D visual effect

Commercial Advertising LED Display

Outdoor 3D DOOH Energy-saving Advertising LED Billboard

1.Kingvisionled outdoor LED billboard is a new generation of outdoor fixed installation LED display. It has energy-saving modules, low power consumption and IP65 dustproof and waterproof characteristics. It also supports curved surface installation and is very suitable for outdoor billboards.

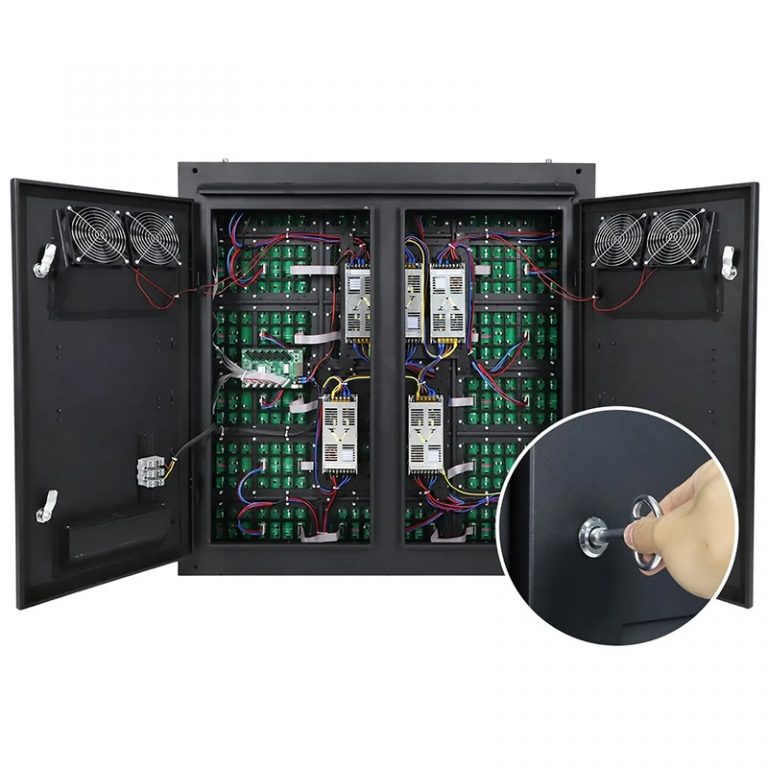

2.Sturdy LED Cabinet： Kingvisionled LED display screen includes two types of cabinets, namely a straight screen cabinet and a curved cabinet. It supports 90-degree curved surface installation and is suitable for fixed installation on building exterior walls.

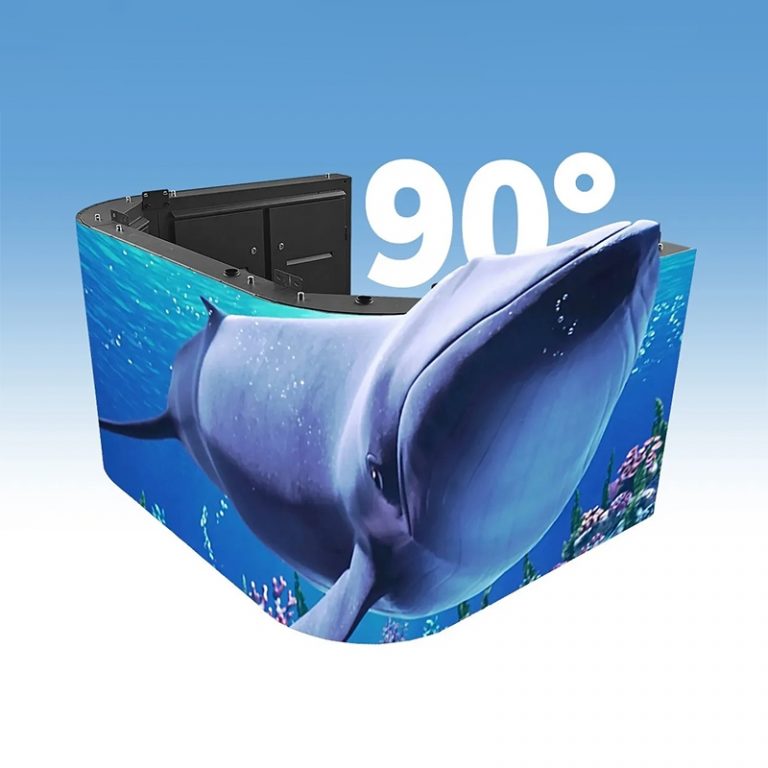

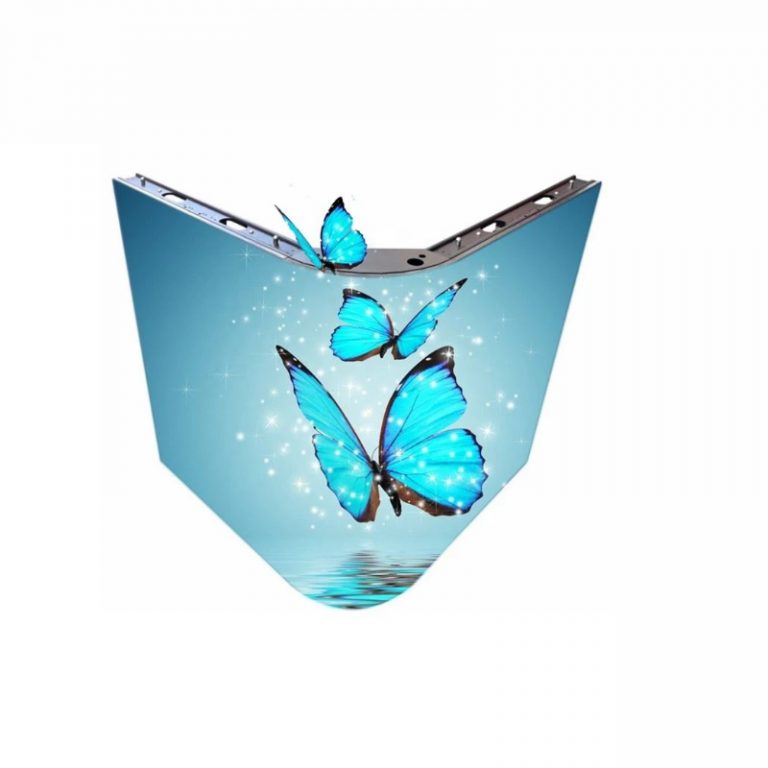

3.90° Curved Display：LED display board supports 90-degree curved surface installation, presenting a naked-eye 3D display effect and stimulating people’s interest in advertising.

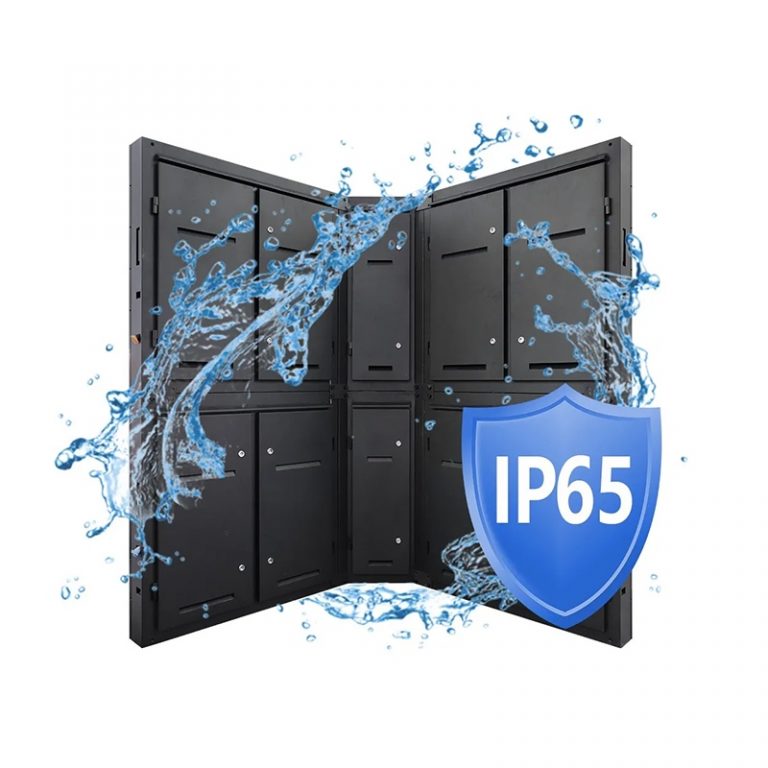

4.IP65 Waterproof：The protection level of the cabinet is as high as IP65, which is weatherproof and dustproof, raising the protection level of the LED display to an extremely high level.

Chat Now

Product Details

Outdoor 3D DOOH Energy-saving Advertising LED Billboard

3.90° Curved Display：LED display board supports 90-degree curved surface installation, presenting a naked-eye 3D display effect and stimulating people’s interest in advertising.

4.IP65 Waterproof：The protection level of the cabinet is as high as IP65, which is weatherproof and dustproof, raising the protection level of the LED display to an extremely high level.

DOOH Fixed Installation	P2.5	P3.076	P4	P5	P6	P8	P10
Pixel Pitch(mm)	2.5	3.076	4	5	6	8	10
LED Chips	SMD 1415	SMD1415	SMD1921	SMD1921	SMD2727	SMD3535	SMD3535
Pixel density(dots/m2)	16000	105625	62500	40000	27777	15625	10000
Driving Method	1/16 scanning	1/13 scanning	1/10 scanning	1/8 scanning	1/6 scanning	1/5 scanning	1/2 scanning
Module Size(mm)	320*160	320*160	320*160	320*160	320*160	320*160	320*160
Module Resolution	128*64	104*52	80*40	64*32	48*24	40*20	32*16
Cabinet Size( W*L mm)	960*960	960*960	960*960	960*960	960*960	960*960	960*960
Cabinet Material	Iron	Iron	Iron	Iron	Iron	Iron	Iron
Cabinet Weight( Kg/m2 )	45	45	45	45	45	45	45
Max.Consumption(W/m2)	800	800	800	800	800	800	800
Ave.Consumption(W/m2)	350	350	350	350	350	350	350
Brightness( Nits )	≥6500	≥6500	≥6500	≥6500	≥6500	≥6500	≥6500
Viewing Angle (Vertical / Horizontal)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
IP Level	IP65	IP65	IP65	IP65	IP65	IP65	IP65
