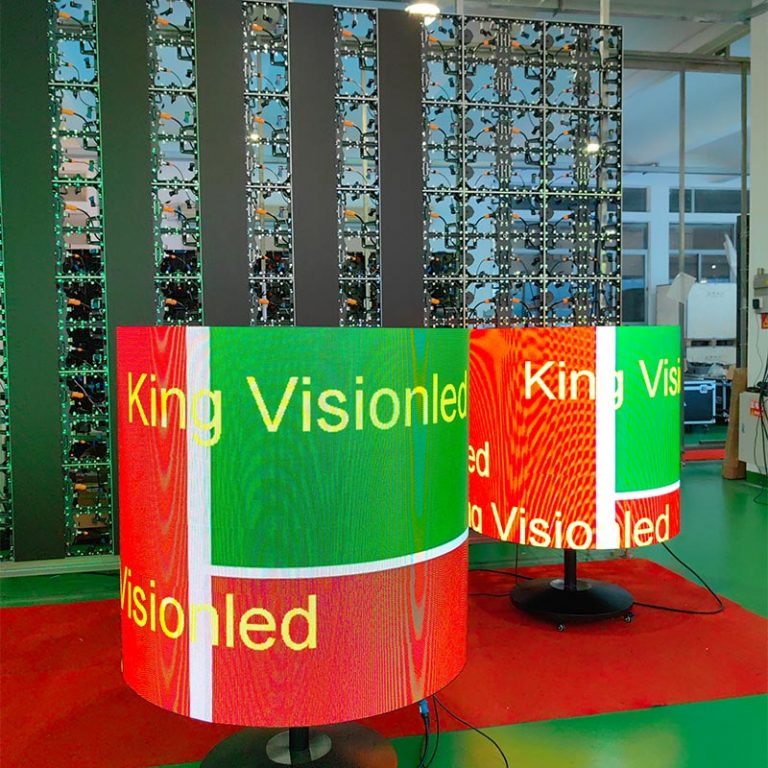

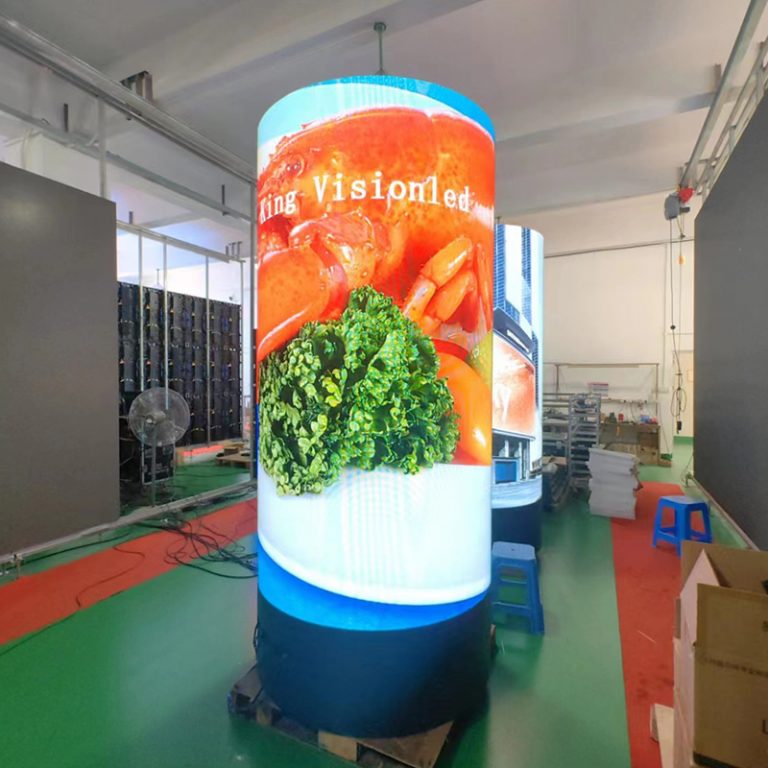

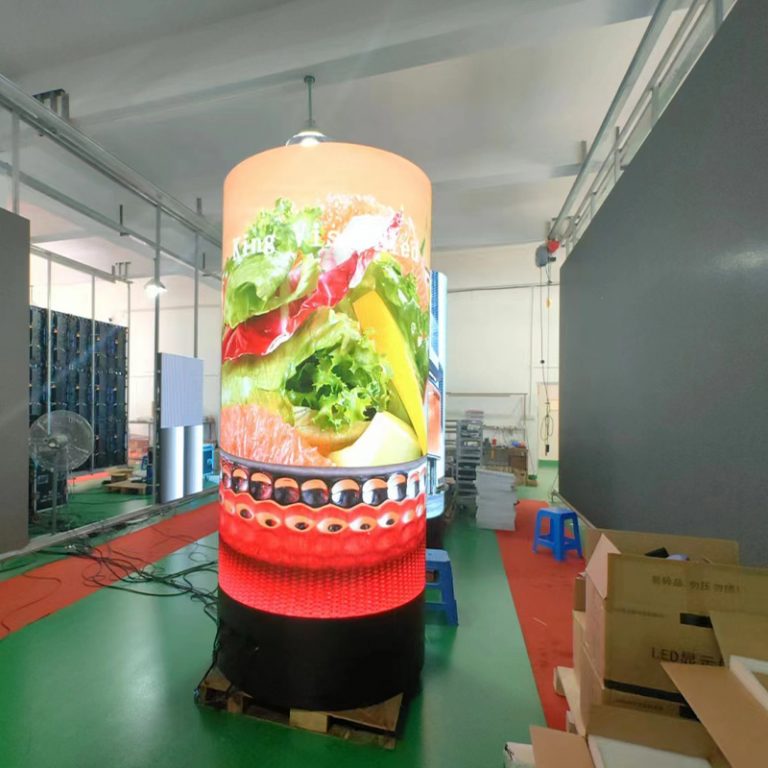

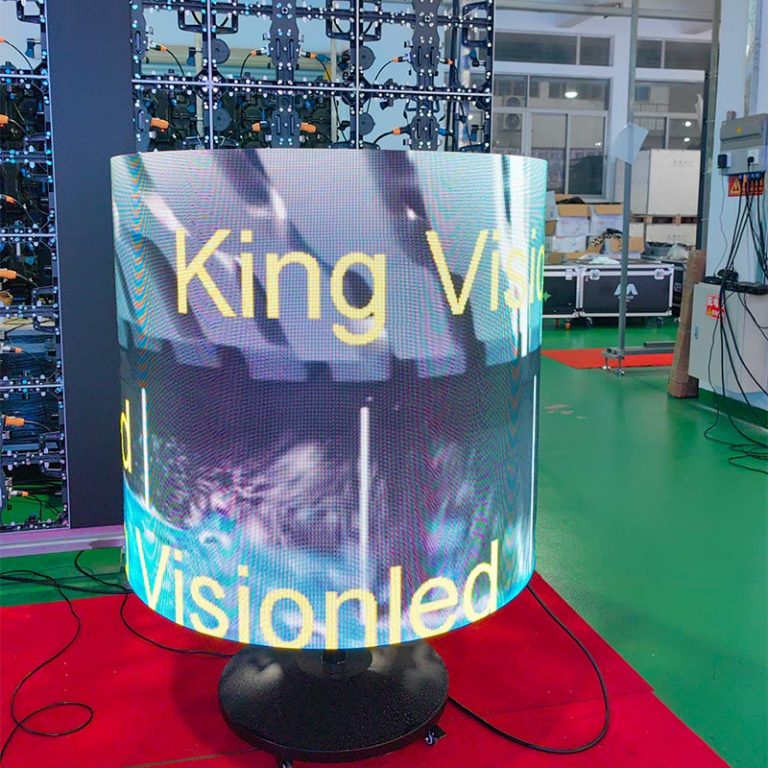

KY Cylinder Indoor Led Screen

Customized LED Display

How to Start to Customize Your LED Display

Step 1: Provide your desired LED display drawing, we need to know the shape and detailed dimension. Also we need to know the what pixel pitch and how will you install the LED display.

Step 2: Once we get enough information, our engineer will analyse and give solution about how to realize. Like what shapes of modules will need; how many of each shape; how many module PCB mould need to make; and program budget.

P.S. If there is difficulty to realize a desired LED display from clients, our team will provide a viable alternative solutions. In a word, we will do the best to help clients to achieve results by the most economically feasible way.

Chat Now

Product Details

How to Start to Customize Your LED Display

Step 1: Provide your desired LED display drawing, we need to know the shape and detailed dimension. Also we need to know the what pixel pitch and how will you install the LED display.

Model	P1.25	P1.56	P1.667	P1.875	2.5mm	3.076mm
Pixel Pitch	1.25mm	1.56mm	1.667mm	1.875mm	2.5mm	3.076mm
LED Type	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD2121
Pixel Type	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Module Size	240×120mm	200×150mm	240×120mm	240×120mm	320x160mm	320x160mm
Module Resolution	192×96Pixel	128×96 Pixel	144×72 Pixel	128×64Pixel	128×64 pixel	104×52 pixel
Pixel Density	640000	409600	360000	284444	160000	105625
Scan	1/48 Scan	1/48 Scan	1/36 Scan	1/32 Scan	1/32 Scan	1/26 Scan
Brightness	1000nit	1000nit	1000nit	1000nit	1000nit	1000nit
View Angle	H:160/ V: 160	H:160/ V: 160	H:160/ V: 160	H:160/ V: 160	H:160/ V: 160	H:160/ V: 160
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Input Voltage	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Grey Level	16 Bit	16 Bit	16 Bit	16 Bit	16 Bit	16 Bit
MTBF	≥ 10,000 hs	≥ 10,000 hs	≥ 10,000 hs	≥ 10,000 hs	≥ 10,000 hs	≥ 10,000 hs
Operating Temperature	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C	-20°C~60°C
Operationg humidity	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%
Environment	Indoor	Indoor	Indoor	indoor	IP43	IP43
