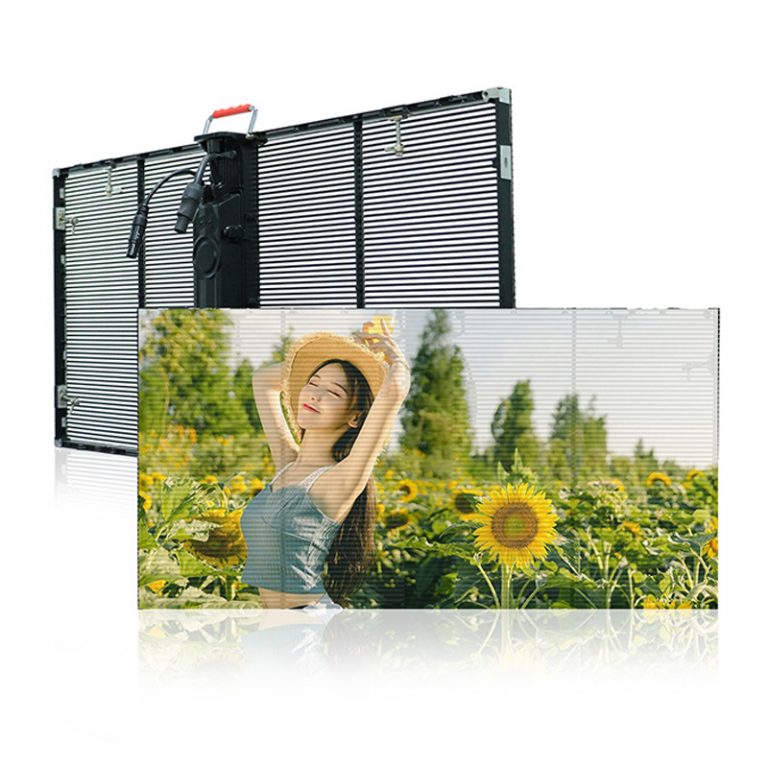

KTPlus Semi-outdoor Curtain Led Video Wall

Transparnt LED Display

KTPlus Semi-Outdoor Curtain Led Video Wall:
1.Ultra-transparency/High brightness,Ultra-transparency: 85% transparency

2.High brightness: 4000cd/sqm,Wider viewing angle/Excellent color reproduction degree,Wider viewing angle: 160°

3.Excellent color reproduction degree,High refresh rate/High contrast ratio,High refresh rate: 3840Hz(can be customized to>10,000Hz) and
High contrast ratio: 1500:1

Chat Now

Product Details

KTPlus Semi-Outdoor Curtain Led Video Wall:
1.Ultra-transparency/High brightness,Ultra-transparency: 85% transparency

2.High brightness: 4000cd/sqm,Wider viewing angle/Excellent color reproduction degree,Wider viewing angle: 160°

3.Excellent color reproduction degree,High refresh rate/High contrast ratio,High refresh rate: 3840Hz(can be customized to>10,000Hz) and
High contrast ratio: 1500:1

Application	INDOOR				OUTDOOR
Model	P2.6-5.6	P3.9-7.8	P7.8-7.8	P10.4-10.4	P15.625-15.625	P16.67-16.67	P25-25	P15.6-31.25	P31.25-31.25
Pixel Pitch(mm)	H2.6-V5.6	H3.9-V7.8	H7.8-V7.8	H10.4-V10.4	H15.625-V15.625	H16.67-V16.67	H25-V25	H15.6-V31.5	H31.25-V31.25
Brightness	800-1000 nit	1500 nit	1200 nit	1200 nit	6000-8000 nit	6000-8000 nit	6000-8000 nit	6000-8000 nit	6000-8000 nit
LED Configuration	SMD2020	SMD1921	SMD2020	SMD2020	DIP346	DIP346	DIP346	DIP346	DIP346
Pixel Density	65824dot/m2	32768dot/m2	16284dot/m2	9216dot/m2	4096dot/m2	3600dot/m2	1600 dot/m2	2048 dot/m2	1024 dot/m2
Transparency	60%	60%	60%	68%	40%	50%	60%	68%	68%
Cabinet Resolution	384x89dot	256X64dot	128X64dot	96X48dot	32x64dot	30x60dot	20x40dot	32x32dot	16x32dot
Scan	11S	16S	4S	2S	2S	2S	2S	2S	2S
Viewing Distance	＞2m	＞3m	＞8m	＞10m	＞15m	＞16m	＞25m	＞28m	＞31m
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Max.Power Consumption	400W/m²	600W/m²	800W/m²	800W/m²	800W/m²	700W/m²	450W/m²	500W/m²	480W/m²
Module Size	500X125mm				500X125mm
Cabinet Size	1000X500mm				500X1000 mm
Ave.Power Consumption	160W/m²				320-200 W/m²
Cabinet Weight	4kg/Panel				8kg/Panel
Gray Scale	16bit				16bit
Operation Power	AC110~ 159V/AC160~ 240V, 50/60Hz				AC110~ 159V/AC160~ 240V, 50/60Hz
Working Temperature	– 30°C~60°C				– 30°C~60°C
IP Rating	IP45				IP67
