KL-N Indoor Front Service LED screen

KL-N Indoor Front Service LED screen

KL-N Indoor Front Service LED screen

KI HD LED VIDEO WALL

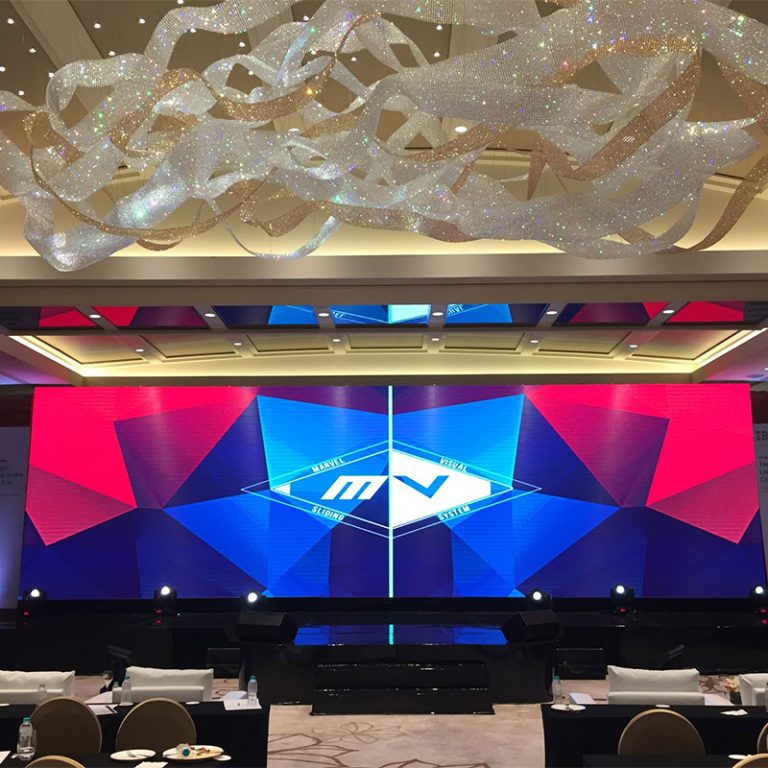

1. Usage: Hotel stage wall, meeting room, monitoring room, Bar entertainment etc
2. Installation: Mounted-wall, standing on the floor. hanging etc
3. Connection:Connected to your computer, Camera or own equipment.

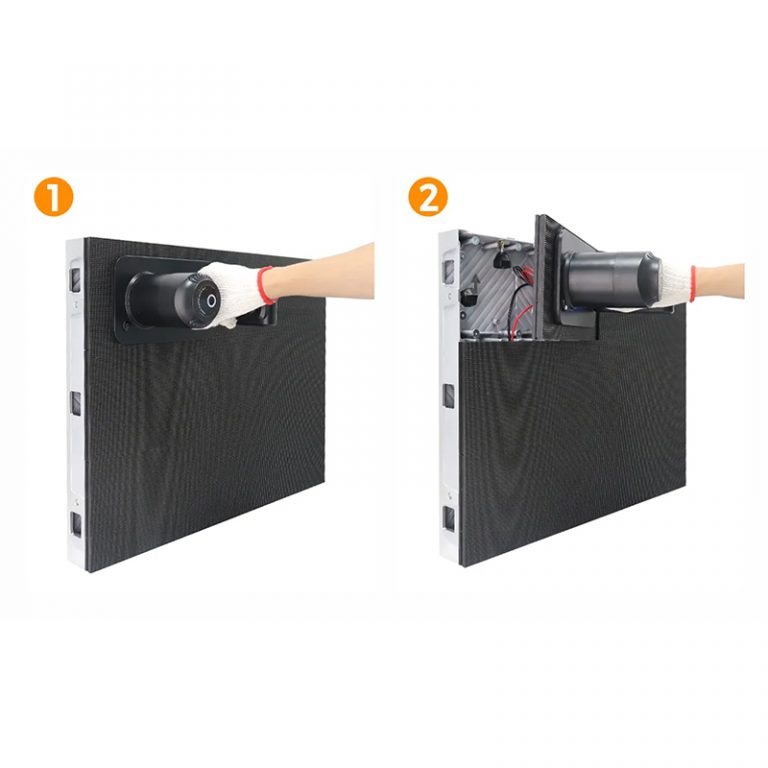

4. Maintenance: Front service help you save labour and maintenance cost

Product Details

KI HD LED VIDEO WALL

1. Usage: Hotel stage wall, meeting room, monitoring room, Bar entertainment etc


2. Installation: Mounted-wall, standing on the floor. hanging etc


3. Connection:Connected to your computer, Camera or own equipment.


4. Maintenance: Front service help you save labour and maintenance cost

Pixel Pitch (mm) P1.25 P1.53 P1.86 P2 P2.5 P3.076 P4
Pixel Configuration SMD1010 SMD1010 SMD1515 SMD1515 SMD2121 SMD2121 SMD2121
Density (Pixels/㎡) 640,000 422,500 288,906 250,000 160,000 105,688 62,500
Module Resolution (Pixel) 256×128 208×104 172×86 160×80 128×64 104×52 80×40
Module Size (mm) 320×160 320×160 320×160 320×160 320×160 320×160 320×160
Driving Mode (Duty) 1/32  1/26 1/43 1/40 1/32  1/26  1/20
Cabinet Size (mm) 640×480 640×480 640×480 640×480 640×480 640×480 640×480
Cabinet Weight (KG) 7.5 7.5 7.5 7.5 7.5 7.5 7.5
Brightness (CD/㎡) 600 600 600 700 800 800 700
Viewing Angle (°) 140 140 140 140 140 140 140
Gray Grade (Bits) 14 14 14 14 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 580 580 580 439 457 413 351
Avg. Power Consumption (W/㎡) 195 195 195 150 153 138 117
Frame Frequency (Hz) ≥60 ≥60 ≥60 ≥60 ≥60 ≥60 ≥60
Refresh Frequency (Hz) 3,840 3,840 3,840 3,840 1,920/3,840 1,920/3,840 1,920/3,840
Working Temperature (ºC) -20~+60 -20~+60 -20~+60 -20~+60 -20~+60 -20~+60 -20~+60
Lifetime (Hours) 100,000 100,000 100,000 100,000 100,000 100,000 100,000
Protection Grade IP31 IP31 IP31 IP31 IP31 IP31 IP31
