KBPlus Outdoor Front-Service Billboard Led Screen

Commercial Advertising LED Display

Outdoor Front-Service Billboard Led Screen
1.With high refresh rate and high gray level, make the LED display screen more realistic, to meet the high visual quality requirements of commercial use;

2.With brightness, color point-by-point correction function;

3.The advertising content on the screen can be changed at any time, showing different advertisements for different customers around the clock;

4.With our mufti-function card, you can use the software to time or manually switch the display at any time to achieve unattended function.

Chat Now

Product Details

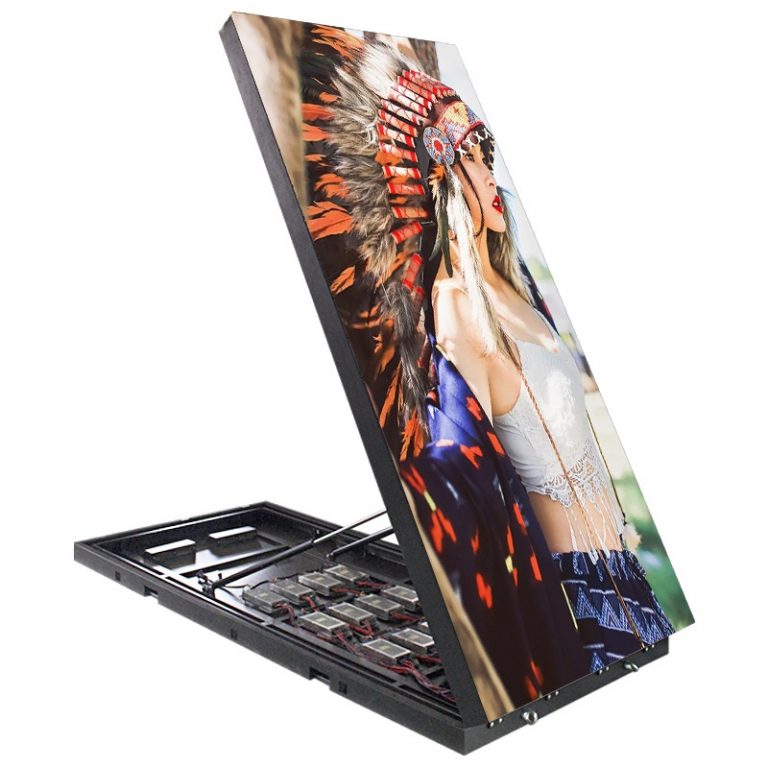

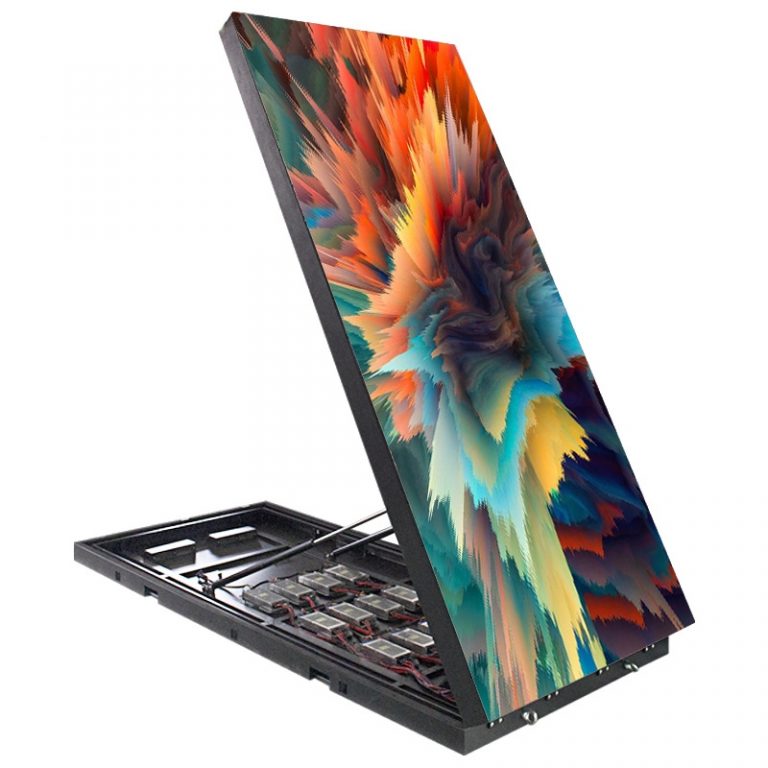

Outdoor Front-Service Billboard Led Screen
1.With high refresh rate and high gray level, make the LED display screen more realistic, to meet the high visual quality requirements of commercial use;

2.With brightness, color point-by-point correction function;

3.The advertising content on the screen can be changed at any time, showing different advertisements for different customers around the clock;

4.With our mufti-function card, you can use the software to time or manually switch the display at any time to achieve unattended function.

DOOH Fixed Installation	P2.5	P4	P5	P6	P8	P10
Pixel Pitch(mm)	2.5	4	5	6	8	10
LED Chips	SMD 1415	SMD1921	SMD2727	SMD2727	SMD3535	SMD3535
Pixel density(dots/m2)	16000	62500	40000	22477	15625	10000
Driving Method	1/16 scanning	1/10 scanning	1/8 scanning	1/6 scanning	1/5 scanning	1/2 scanning
Module Size(mm)	320*160	320*160	320*160	320*160	320*160	320*160
Module Resolution	128*64	80*40	64*32	48*24	40*20	32*16
Cabinet Material	Iron	Iron	Iron	Iron	Iron	Iron
Cabinet Weight( Kg/m2 )	45	45	45	45	45	45
Max.Consumption(W/m2)	800	800	800	800	800	800
Ave.Consumption(W/m2)	350	350	350	350	350	350
Brightness( Nits )	≥6500	≥6500	≥6500	≥7500	≥7500	≥7500
Viewing Angle (Vertical / Horizontal)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
IP Level	IP65	IP65	IP65	IP65	IP65	IP65
