Indoor LED VIDEO WAL

UHD Small Pixel Pitch LED Display

Indoor COB LED Screen Parameter
Pixel Pitch (mm)	P0.78	P0.93	P1.25	P1.56
Model	P0.78	P0.93	P1.25	P1.56
Pixel Configuration	Flip-chip COB	Flip-chip COB	Flip-chip COB	Flip-chip COB
Density (Pixels/㎡)	1638400	1130000	640000	409600
Module Resolution (Pixel)	192×216	160×180	120×135	96×108
Module Size (mm)	150×168.75	150×168.75	150×168.75	150×168.75
Driving Mode (Duty)	1/54	1/60	1/45	1/54

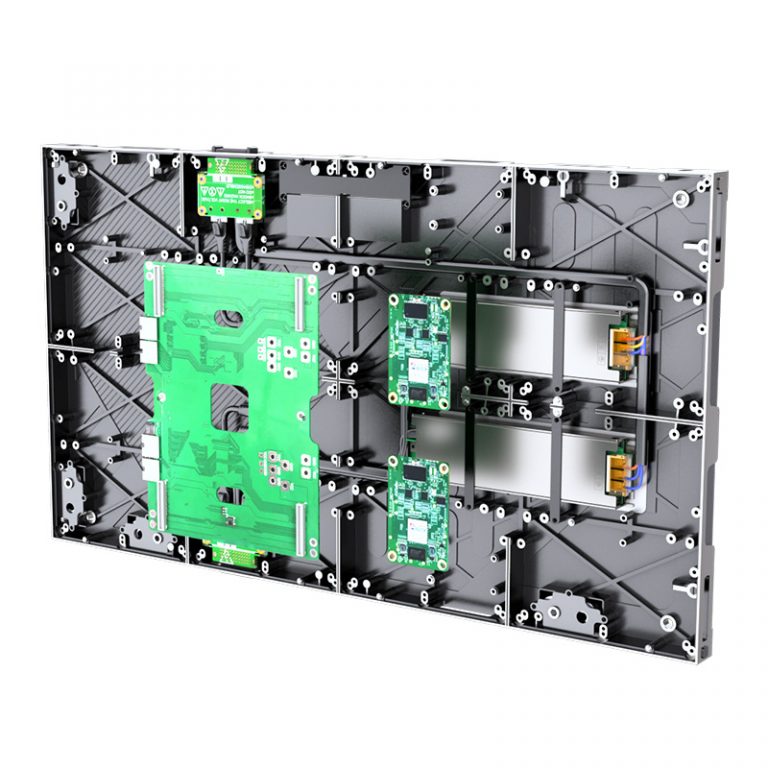

Cabinet Size (mm)	600×337.5	600×337.5	600×337.5	600×337.5
Cabinet Weight (KG)	5.1	5.1	5.1	5.1
Brightness (CD/㎡)	500~800	500~800	500~800	500~800
Viewing Angle (°)	160	160	160	160
Gray Grade (Bits)	16	16	16	16
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	500	500	500	500
Avg. Power Consumption (W/㎡)	165~260	165~260	165~260	165~260
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+50	-20～+50	-20～+50	-20～+50
Lifetime (Hours)	100,000	100,000	100,000	100,000
Protection Grade	IP45	IP45	IP45	IP45
