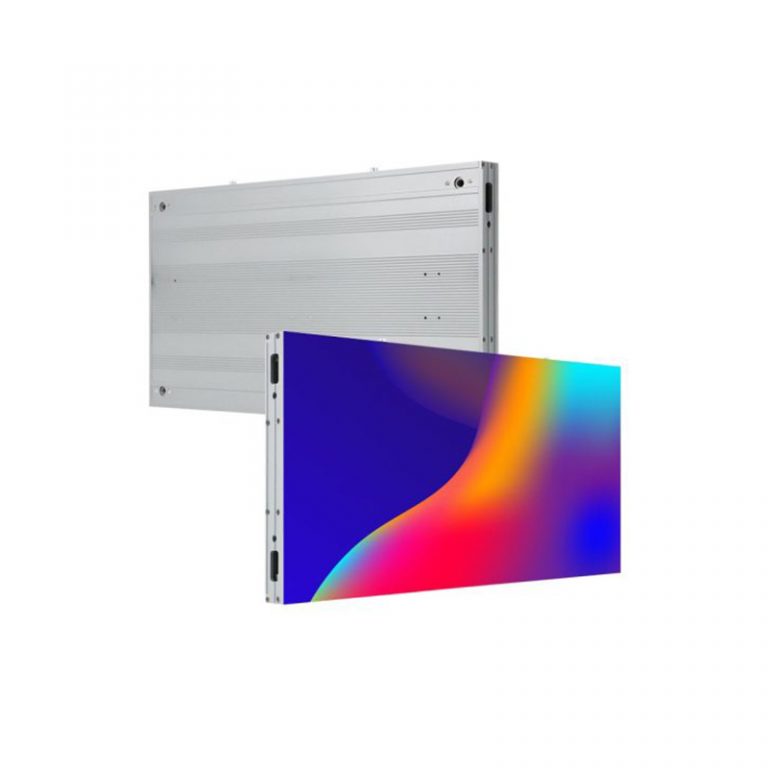

Front-Maintain LED Video Wall

Front-Maintain LED Video Wall

Front-Maintain LED Video Wall

UHD Small Pixel Pitch LED Display

Front Service Indoor LED Video Wall

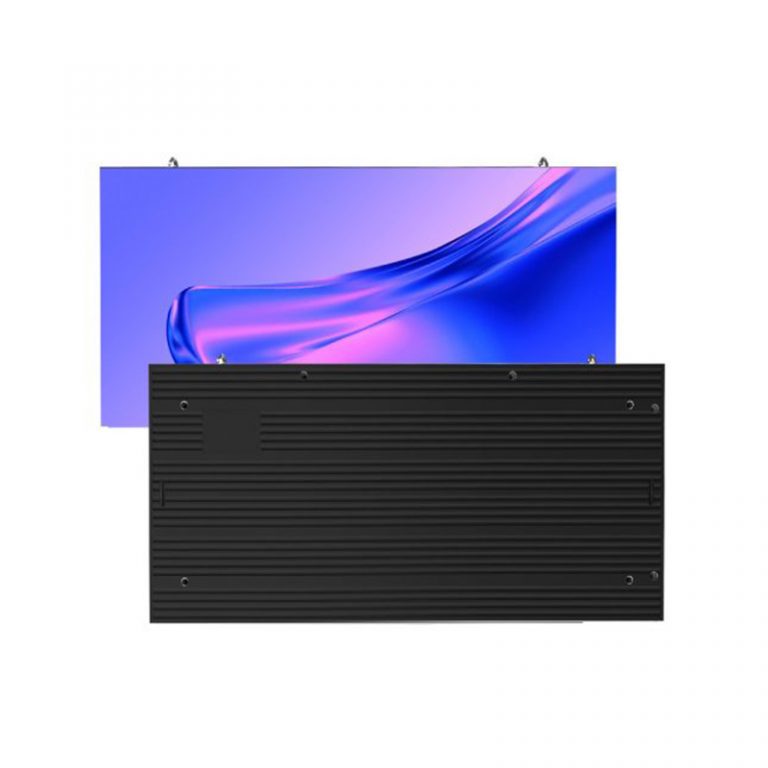

Can be mounted on the wall

Hard connection design

90° right-angle seamless splicing

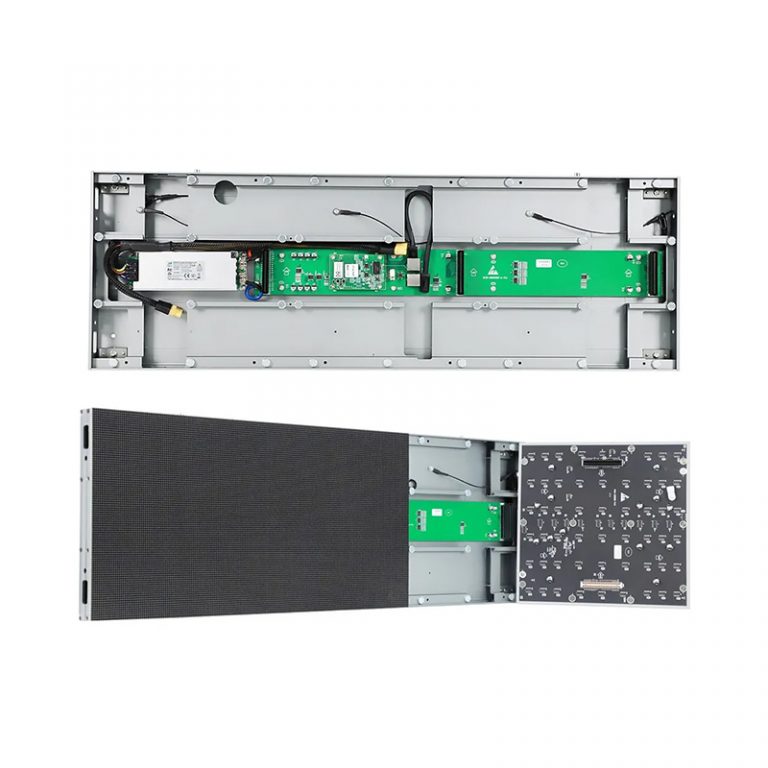

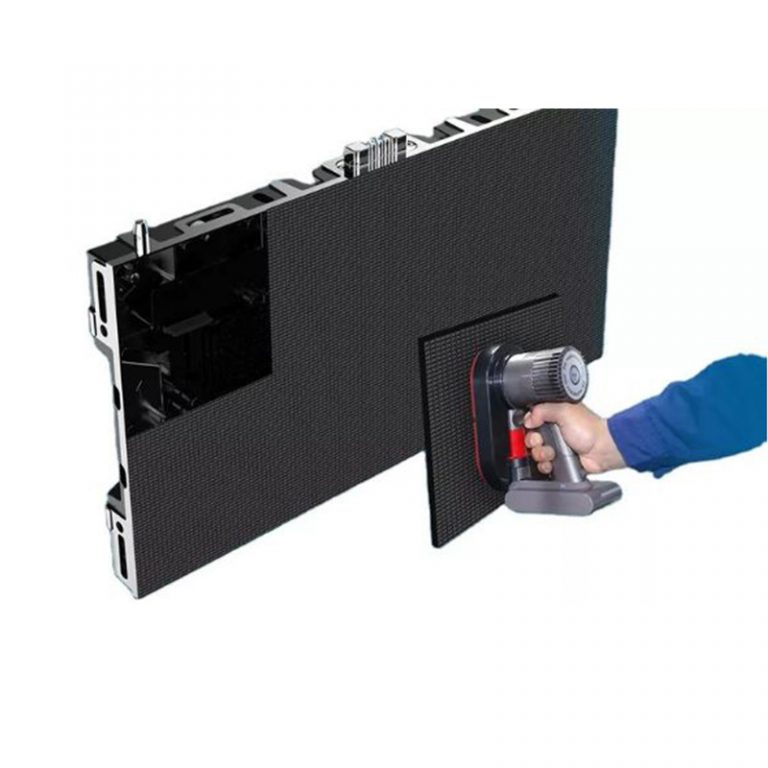

Full front service design

3840Hz high refresh rate

Available sizes: 500x250mm, 750x250mm, 1000x250mm

31mm super thin and ultra-light cabinet

Wide viewing angle, no reflection

Product Details

Front Service Indoor LED Video Wall

Can be mounted on the wall

Hard connection design

90° right-angle seamless splicing

Full front service design

3840Hz high refresh rate

Available sizes: 500x250mm, 750x250mm, 1000x250mm

31mm super thin and ultra-light cabinet

Wide viewing angle, no reflection

Front Service Indoor Wallpaper LED Screen Parameter
Pixel Pitch (mm)	P1.5	P1.95	P2.5	P2.6	P2.97	P3.91
Model	P1.5	P1.95	P2.5	P2.6	P2.97	P3.91
Pixel Configuration	SMD1212(GOB)	SMD1515	SMD1515	SMD1515	SMD1515	SMD1515
Density (Pixels/㎡)	409,600	262,144	160,000	147,456	112,896	65,536
Module Resolution (Pixel)	160×160	128×128	100×100	96×96	84×84	64×64
Module Size (mm)	250×250	250×250	250×250	250×250	250×250	250×250
Cabinet Size (mm)	500/750/1000×250	500/750/1000×250	500/750/1000×250	500/750/1000×250	500/750/1000×250	500/750/1000×250
Cabinet Weight (KG)	2.9/4.5/5.8	2.9/4.5/5.8	2.9/4.5/5.8	2.9/4.5/5.8	2.9/4.5/5.8	2.9/4.5/5.8
Brightness (CD/㎡)	600	800	800	800	800	1000
Viewing Angle (°)	140	140	140	140	140	140
Gray Grade (Bits)	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional
Operation Power	AC90-264V,47-63Hz	AC90-264V,47-63Hz	AC90-264V,47-63Hz	AC90-264V,47-63Hz	AC90-264V,47-63Hz	AC90-264V,47-63Hz
Max. Power Consumption (W/㎡)	650	650	650	650	650	650
Avg. Power Consumption (W/㎡)	100-200	100-200	100-200	100-200	100-200	100-200
Frame Frequency (Hz)	50/60	50/60	50/60	50/60	50/60	50/60
Refresh Frequency (Hz)	3840	3840	3840	3840	3840	3840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,00	100,00	100,00	100,00	100,00
Protection Grade	IP31	IP31	IP31	IP31	IP31	IP31
